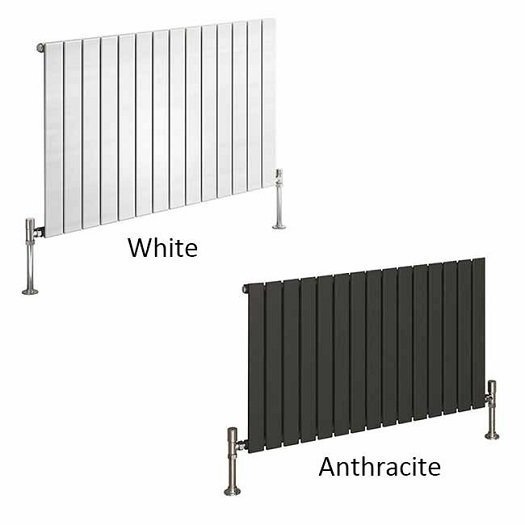

Flat Panel Horizontal Designer Radiators White and Anthracite

Flat Horizontal

Single

Overall Dimension		Pipe Centres mm Radiator width + 90mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Heat Output Delta:T50C
Height mm	Width mm					Btu	Watts
600	440	530	27	56	C/E/D	1072	314
600	588	678	27	56	C/E/D	1429	419
600	810	900	27	56	C/E/D	1965	576
600	1032	1122	27	56	C/E/D	2501	733
600 600	1254 1402	1344 1492	27 27	56 56	C/E/D C/E/D	3037 3697	891 1084

Double

Overall Dimension		Pipe Centres mm Radiator width + 90mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Heat Output Delta:T50C
Height mm	Width mm					Btu	Watts
600	440	530	64	93	C/E/D	1554	456
600	588	678	64	93	C/E/D	2072	608
600	810	900	64	93	C/E/D	2849	835
600	1032	1122	64	93	C/E/D	3626	1063
600 600	1254 1402	1344 1492	64 64	93 93	C/E/D C/E/D	4404 4923	1291 1443

C: CENTRAL HEATING | E: ELECTRIC | D:DUAL FUEL For pipe center measurement including valves add/subtract 90mm accordingly
