What type of valves do I need
0
What are the Differences Between Angled, Corner and Straight Valves

Angled valves are true to their name as they connect the radiator with the central heating pipework at an angle, generally 90 degrees. They are used when the pipework comes out of the wall or from below the floorboards and will therefore need an angle to be able to fit into the radiators inlet connection. Angled valves are being used more and more as they look neater having less visible pipework than a straight valve.

Corner Valves are for pipes coming out of the wall to connect to the side of a radiator. These are not suitable for radiators with bottom entry connections

Straight valves also live up to their name as they have no bends or curves and just connect the central heating with the radiator straight up from the floor horizontally. Therefore, if your pipework is to run along the wall, straight into the radiator it would be the most appropriate choice to purchase a straight valve.

What are the Different Types of Valves?

There are two main different types of valves, these are manual and thermostatic.

Manual Valve

A manual valve is the most common type and works quite similarly to a tap, as you simply turn it on to allow the central heating to pass into the radiator and when it is at a sufficient temperature you can turn it off again. It is a simple design but does mean that you need to keep an eye on your heating bill because it can creep up on you if you do not turn it off.

Thermostatic Valve

A Thermostatic Radiator Valve or TRV is the most practical type of radiator valve because you can adjust the temperature in each room to whatever you feel is comfortable. It will regulate the flow of the central heating into the radiator and will reduce this flow as the room heats up meaning that it can save you a lot on heating bills.

Important Note; Houses are required to have at least one radiator valve that is not a thermostatic valve in order for there to be one radiator that has the central heating to flow through it constantly therefore reducing the chances of damage to the boiler. It is best to place this non-thermostatic valve in either the bathroom or in the room where where the thermostat is fitted.

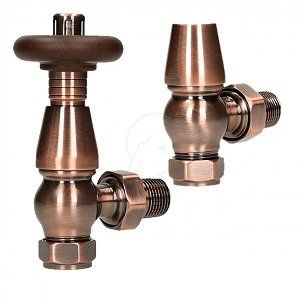

Angled Valve

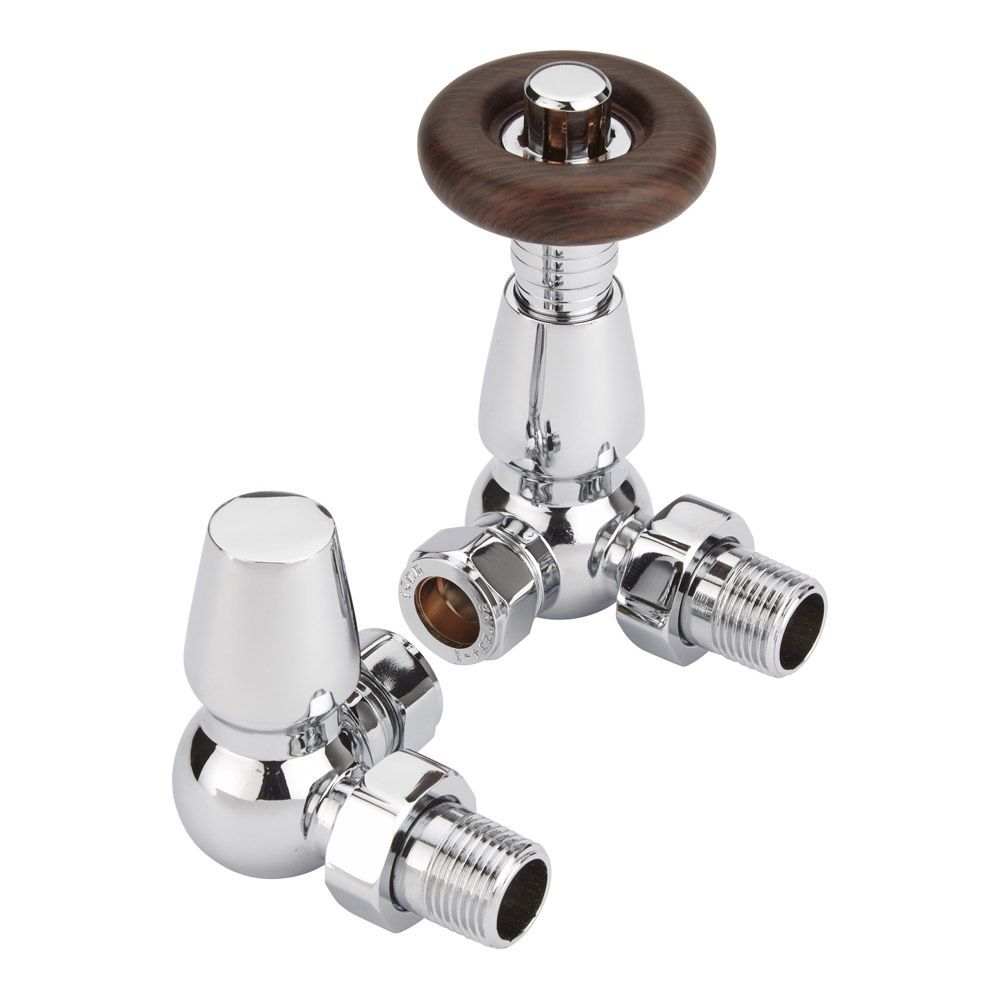

Corner Valve

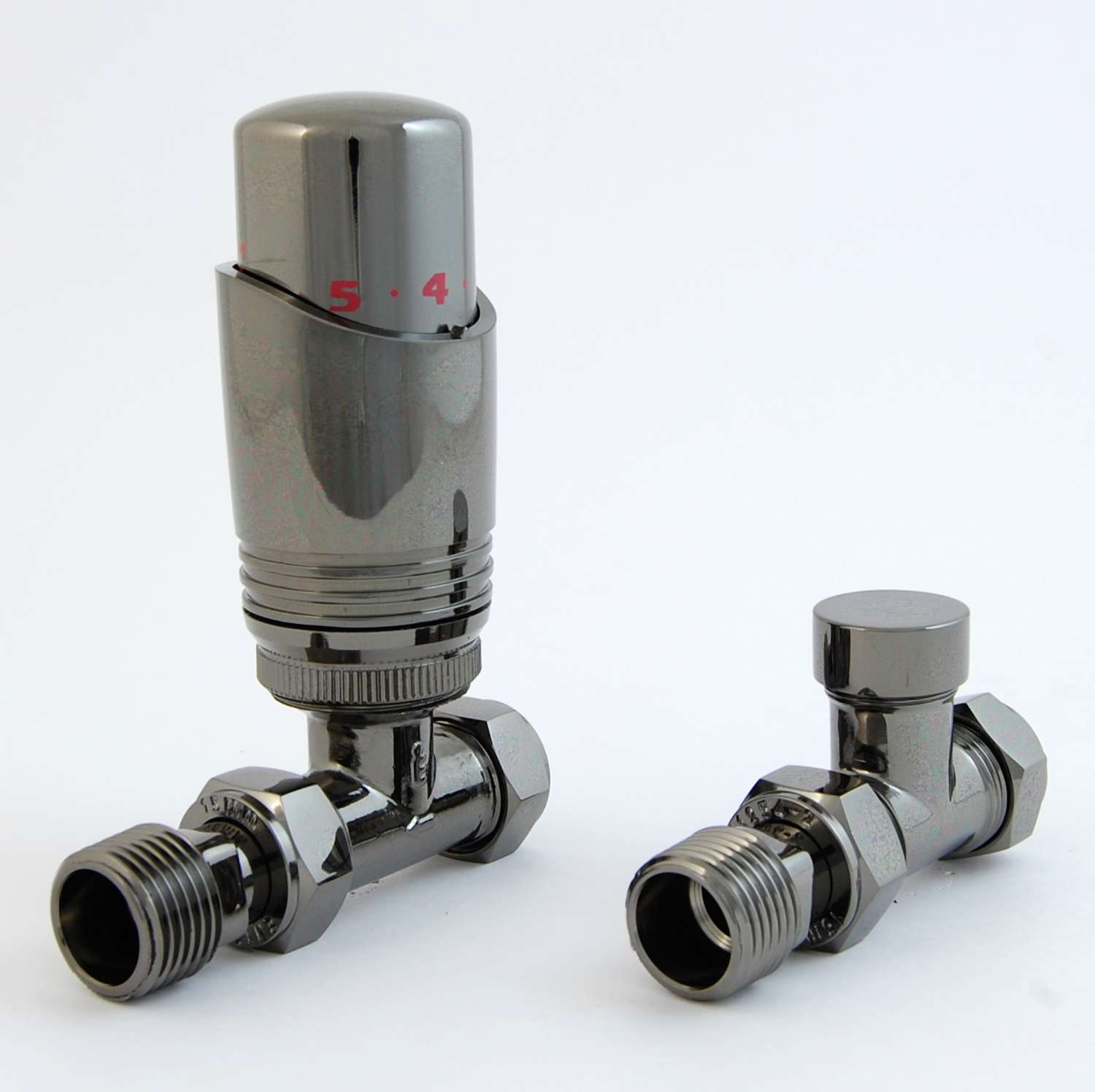

Straight Valve

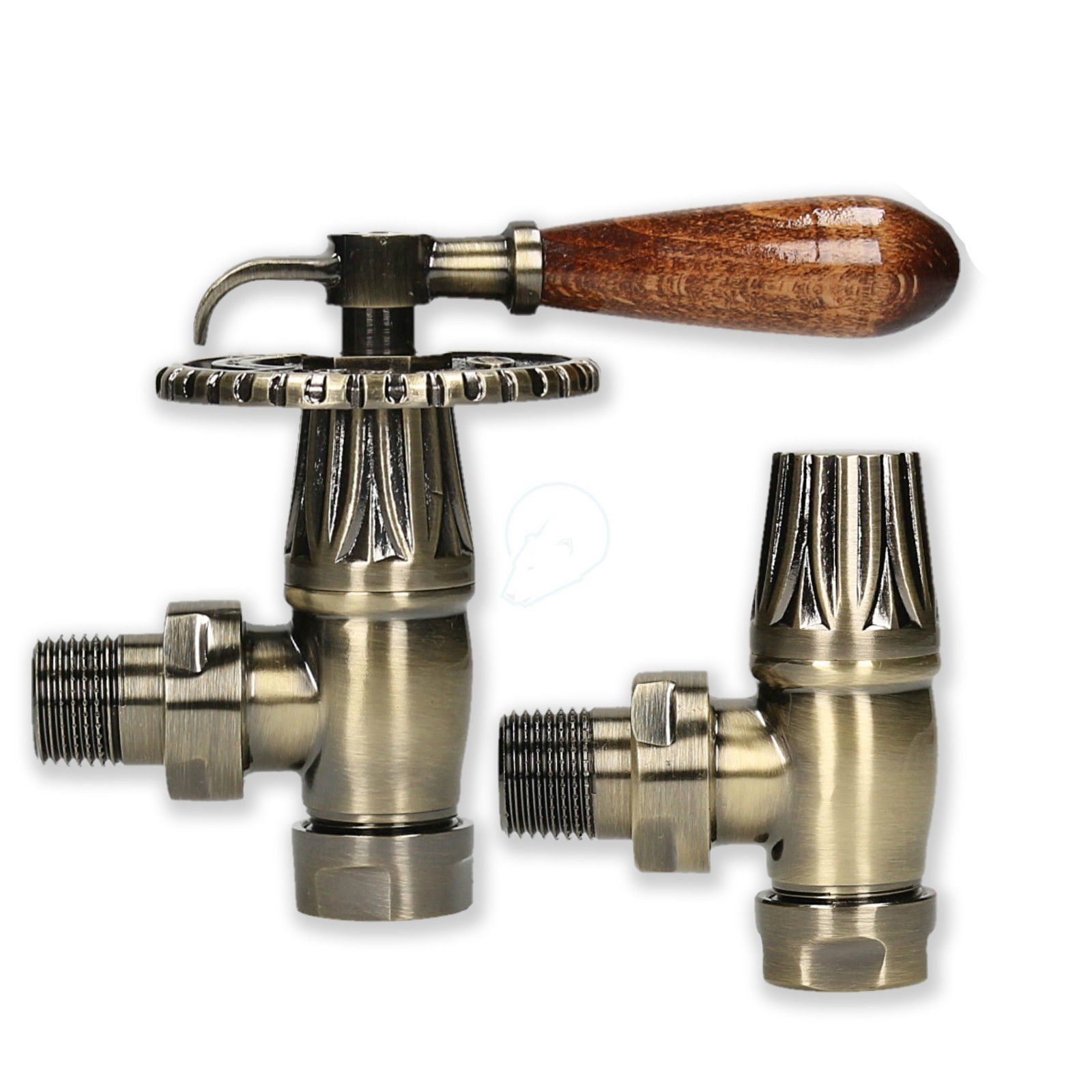

Angled Valve
